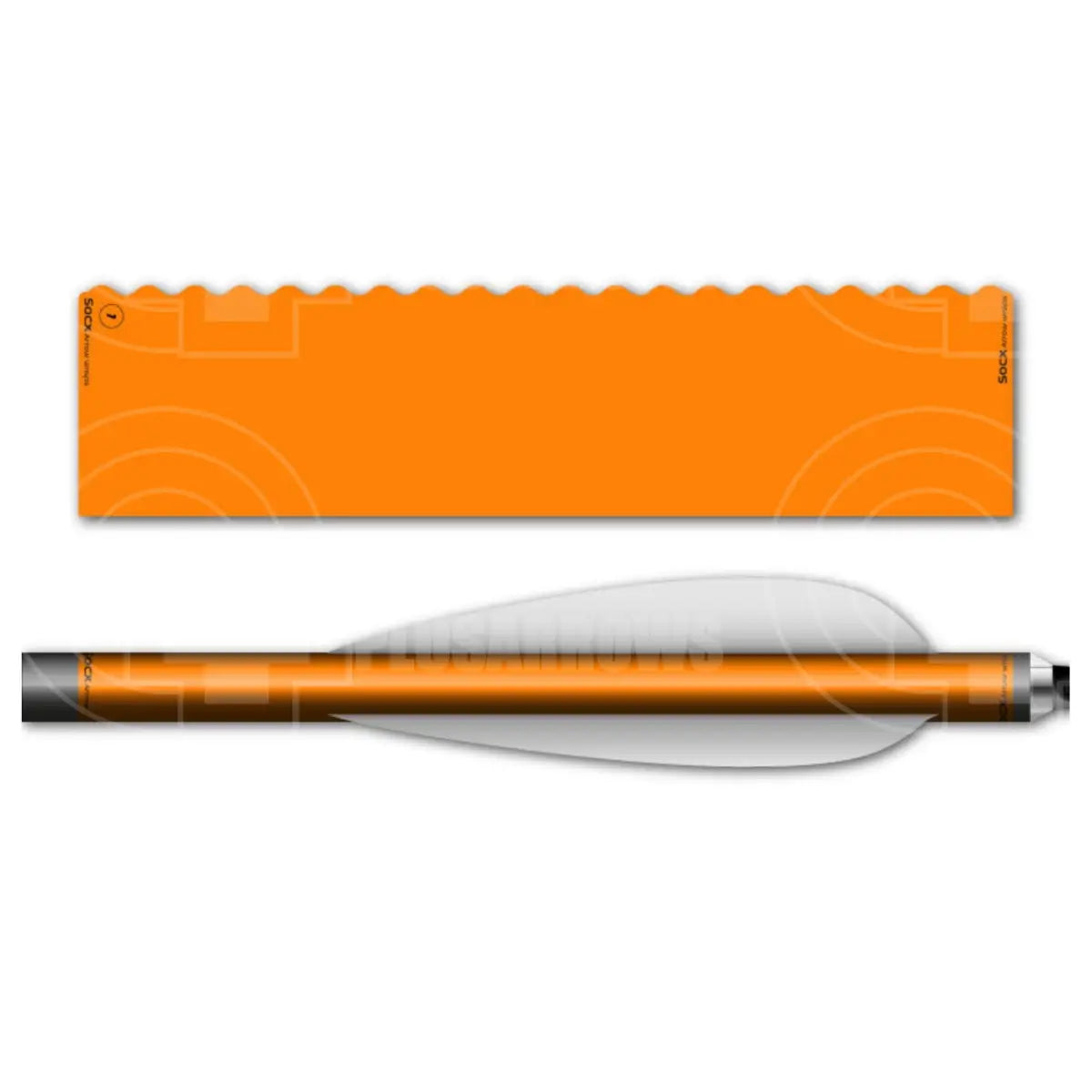

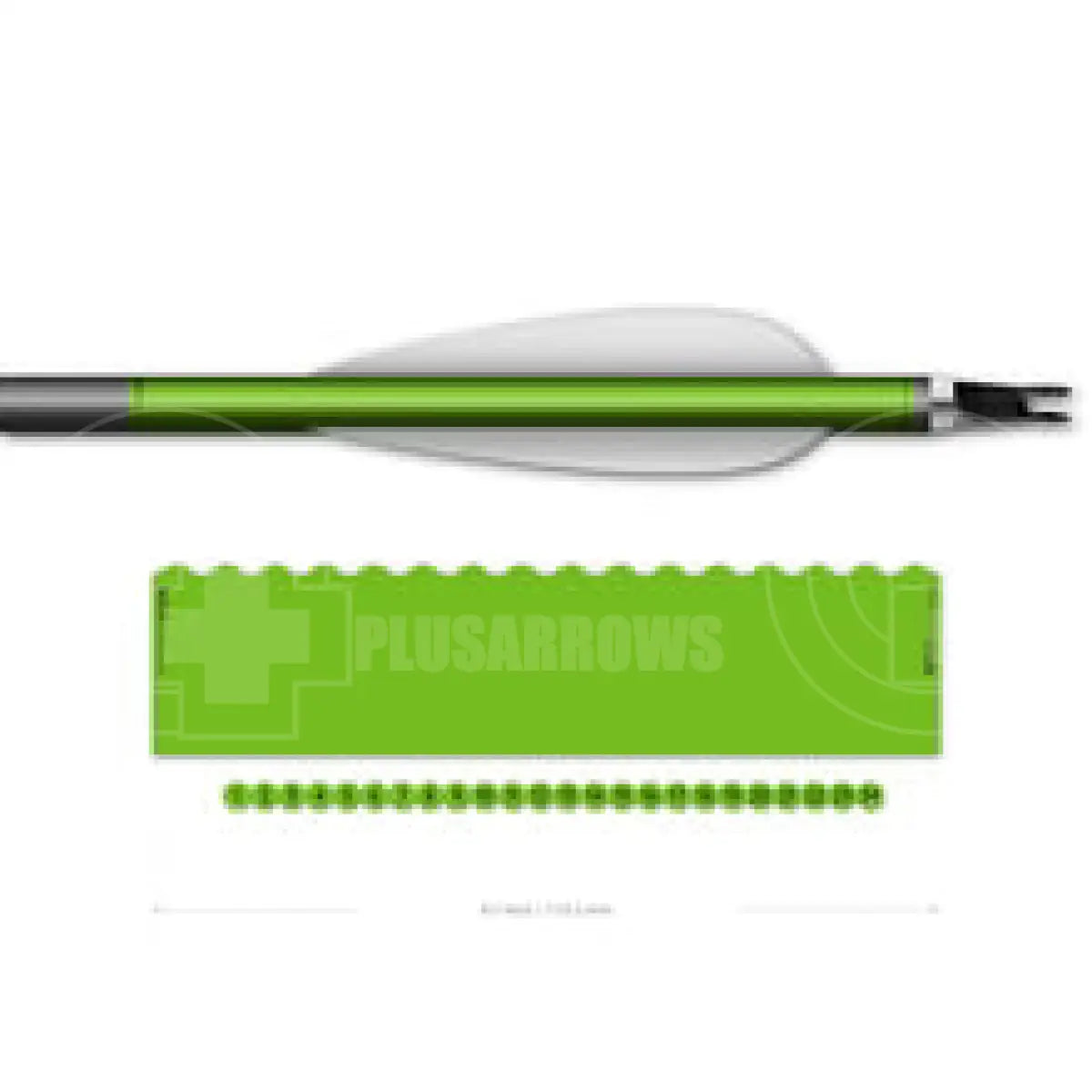

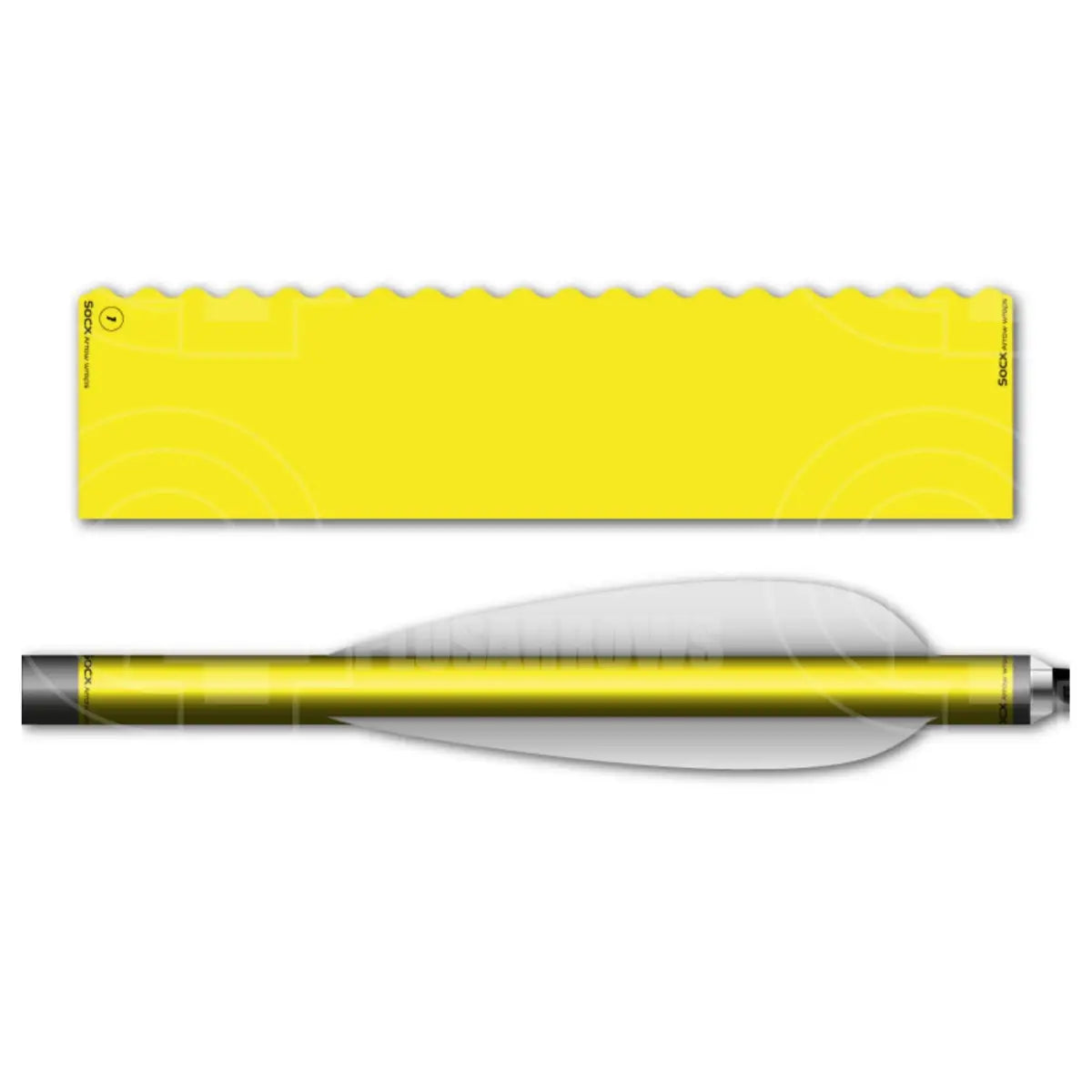

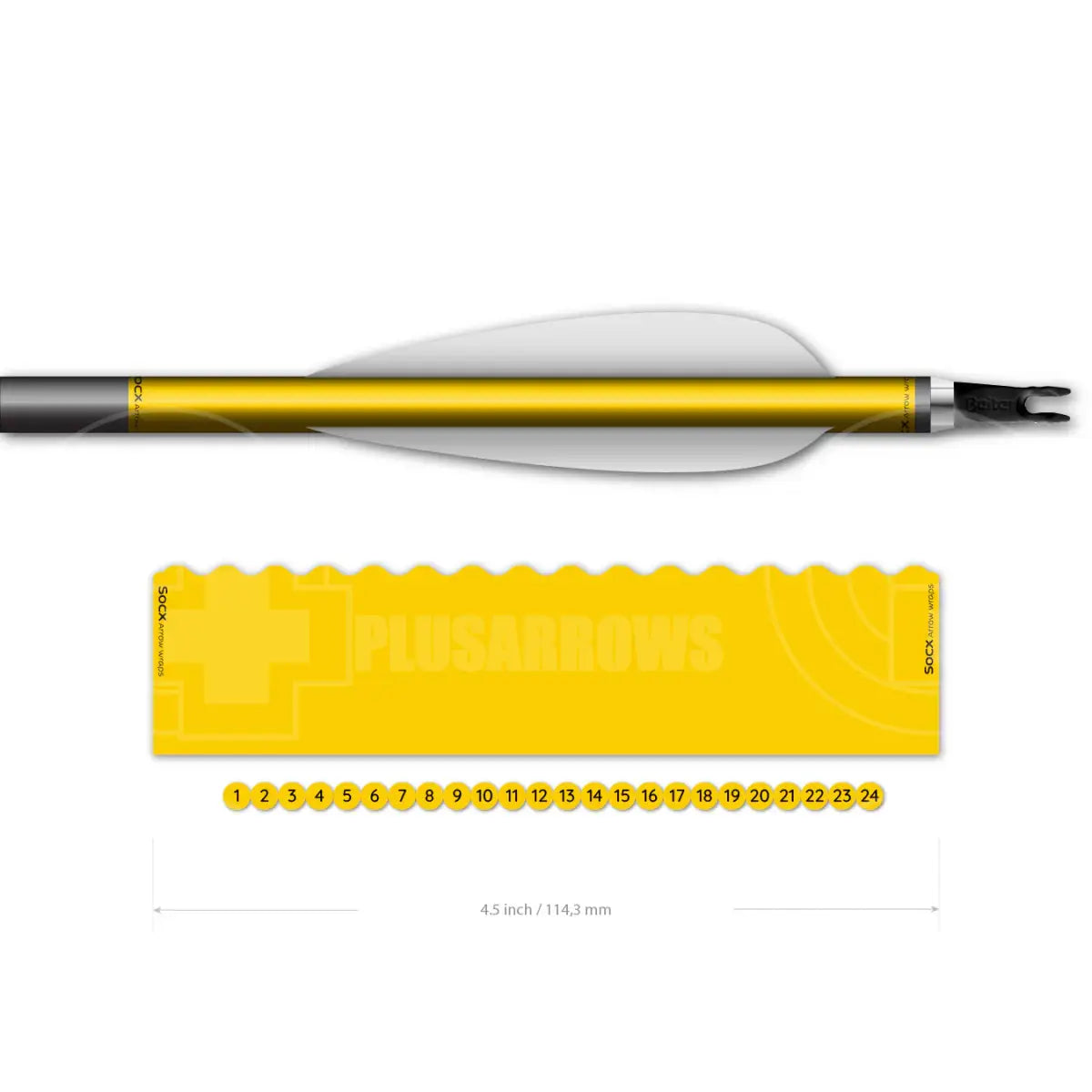

The Socx Arrow Wrap Wave Edge was designed to battle the mechanical stress wraps endured when using plastic vanes.

When shooting a compound bow the vane to wrap bond can endure a lot of stress. Due to small grouping the vanes will be touching other arrows. When these vanes are glued on the top layer and close to the overlap line it can happen that the stress of the arrows touching each other can separate the vinyl from the shaft.

Although this can be solved by gluing the vanes further from the overlapping edge, this Wave Edge design will not effect any vane placement position. This makes it easier to glue on your vanes as positioning is not critical.

Each set contains 12 wraps.

Available in three sizes:

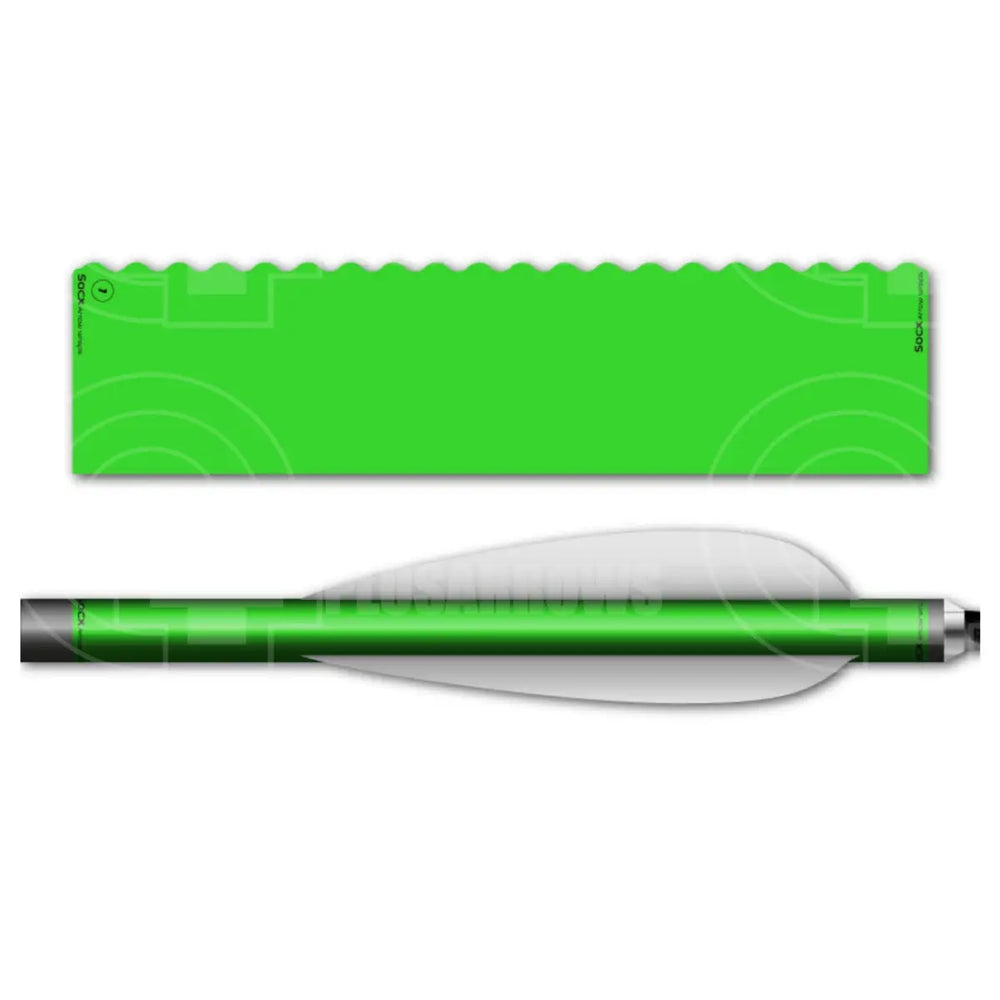

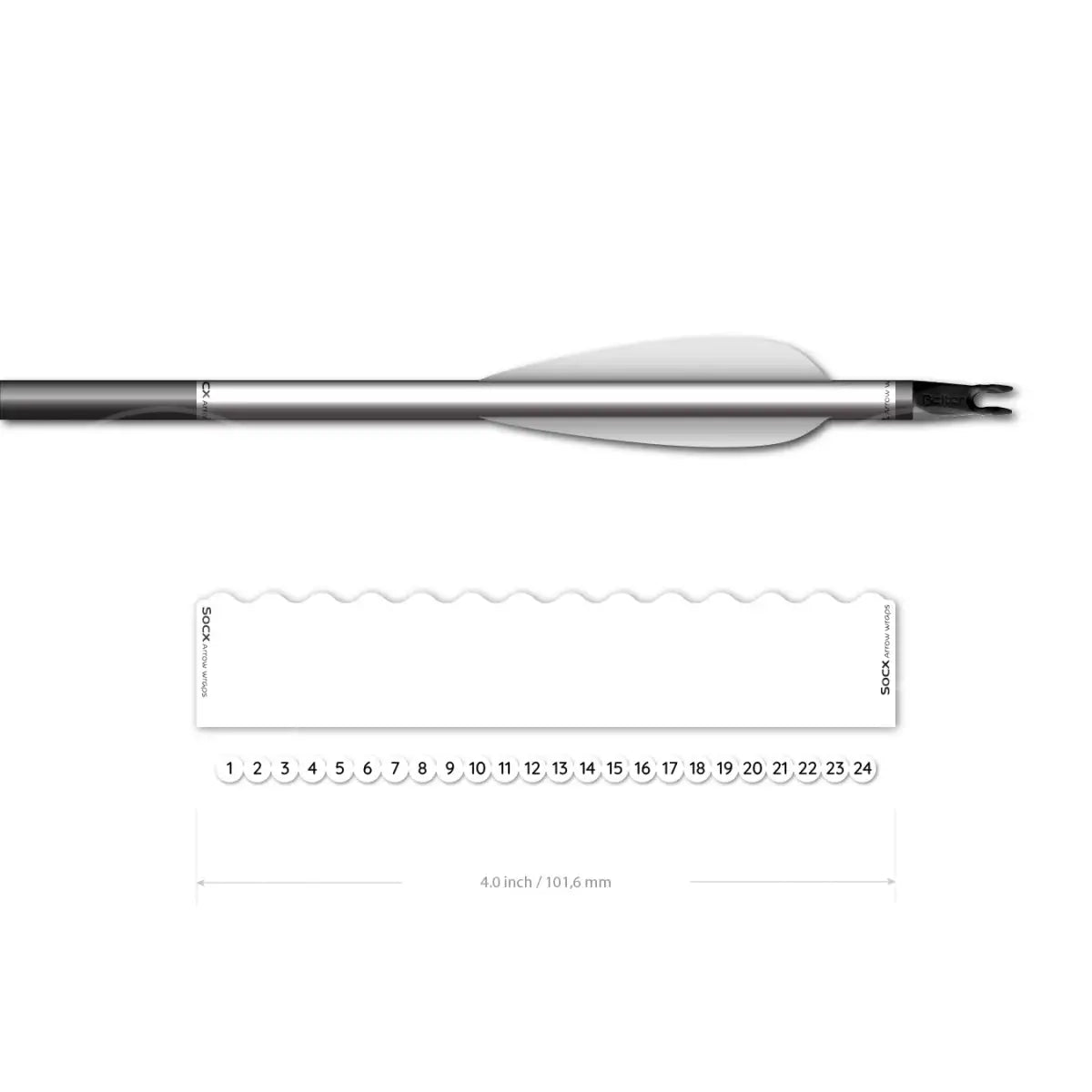

Small Wrap fits any shaft up to 5.5mm diameter

• Wrap length: 4 inch /101.6mm
• Wrap Weight: 5.4 grains

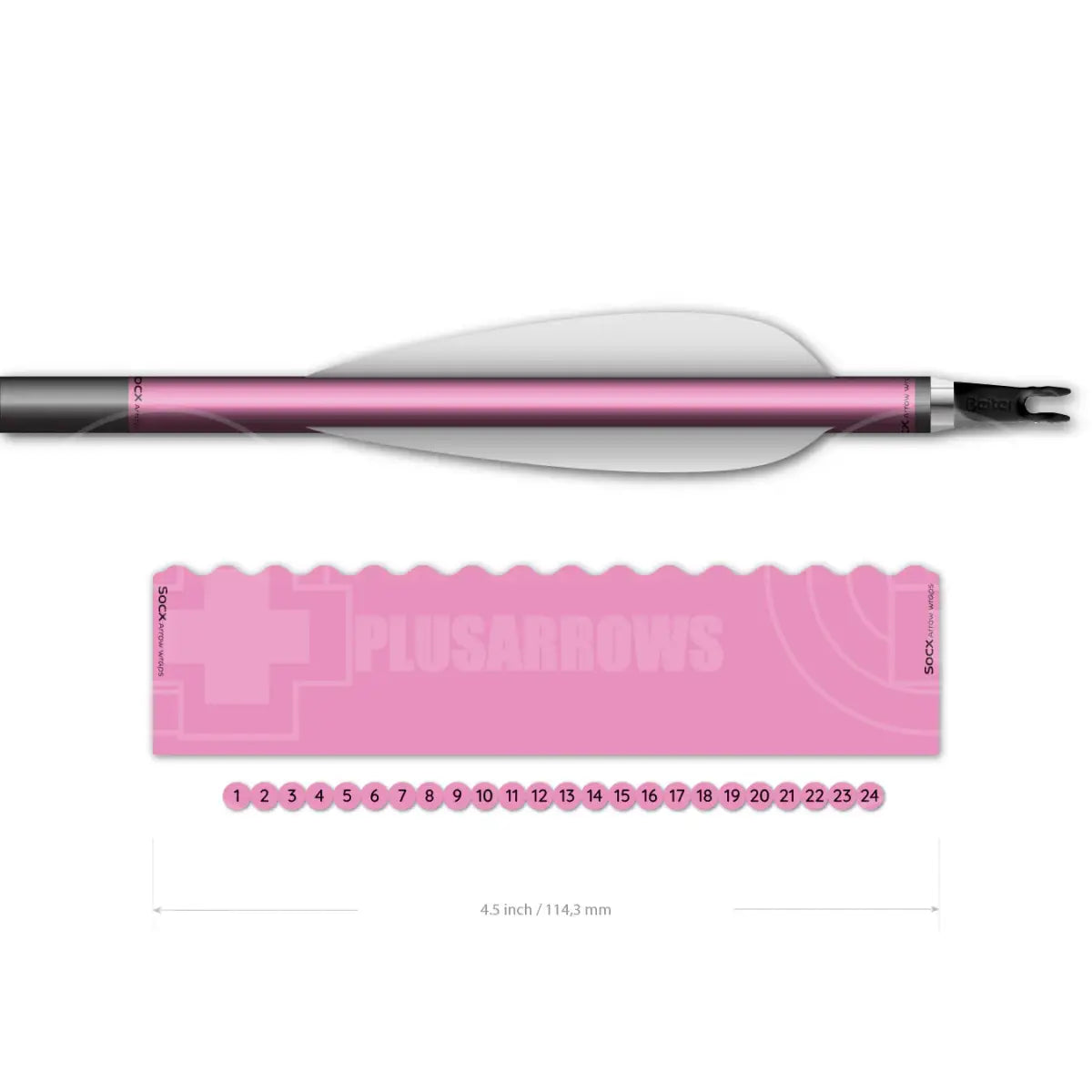

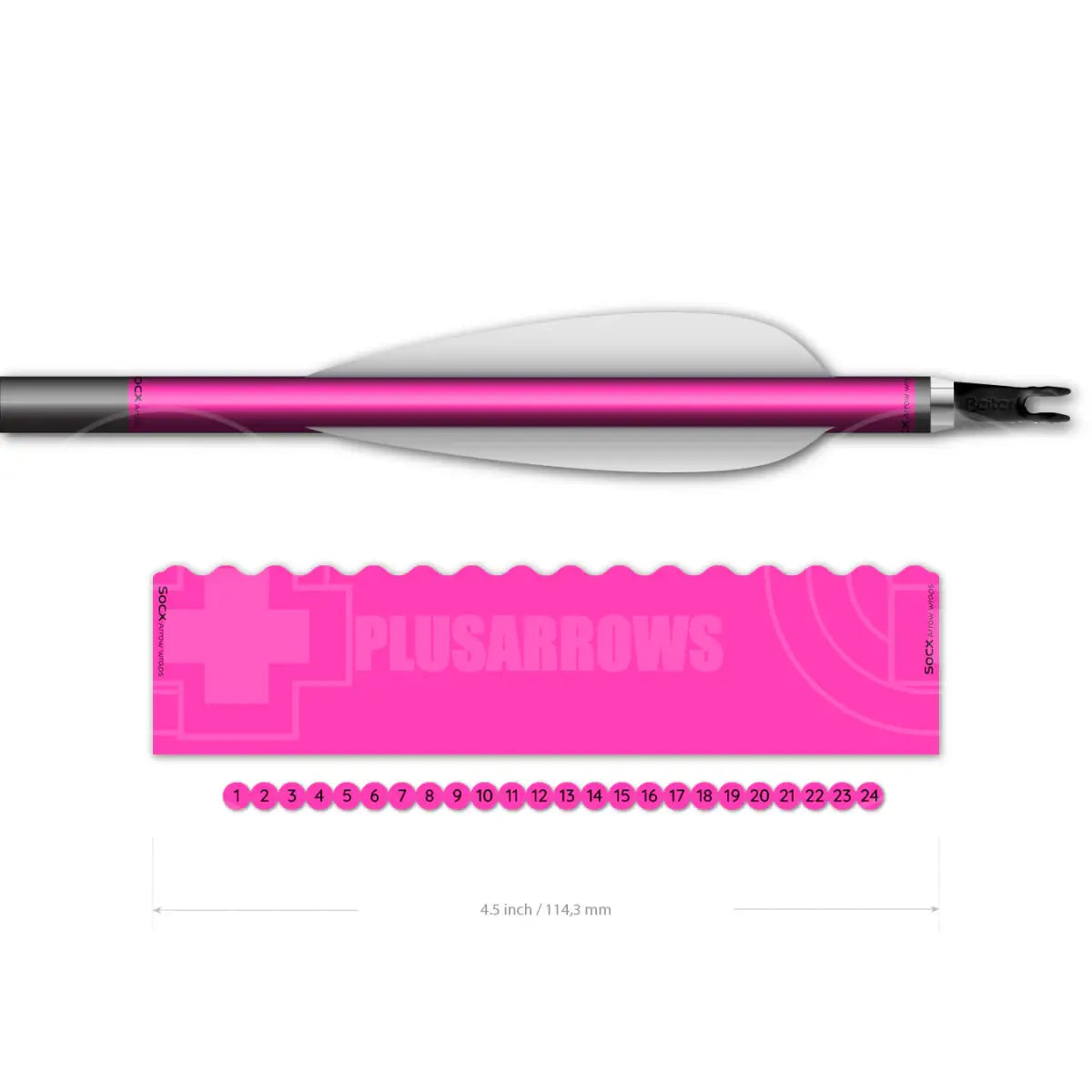

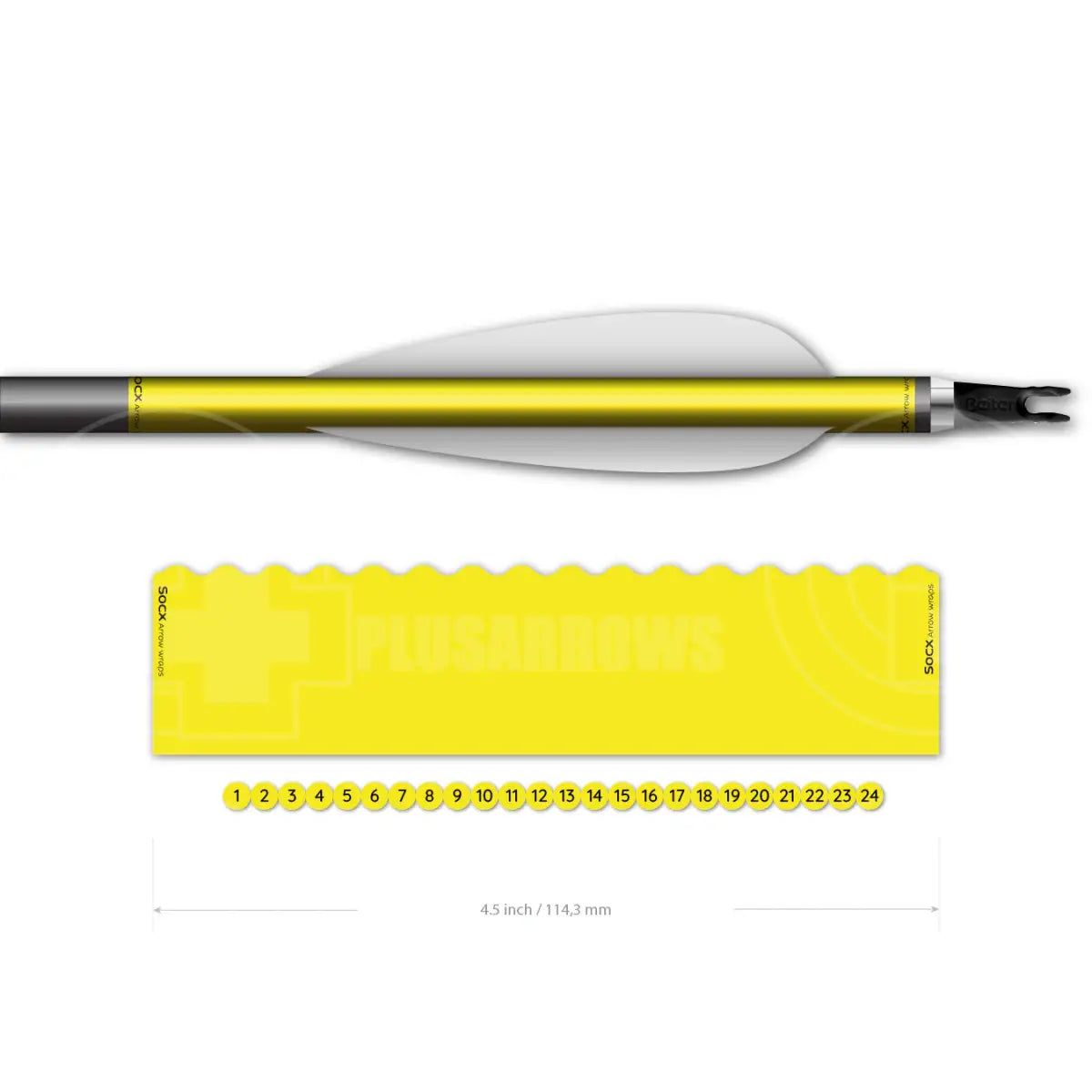

Regular Wrap fits any shaft up to 8.0mm diameter

• Wrap length: 4.5 inch /114.3mm
• Wrap Weight: 8.2 grains


Large Wrap fits any shaft up to 10.3mm diameter

• Wrap length: 5.5 inch /139.7mm
• Wrap Weight: 13.8 grains


HOW TO APPLY ARROW WRAPS

1. Remove a wrap from the backing-paper.Preferably use a knife, not your fingers. Greasy fingers can negatively influence the layer of glue. wash hands before wrapping.
2. Align the wrap with the application pad* with the glue layer facing upward!
3. Align the arrow shaft to the wrap. Use the offset lines to get your preferred clearance from the nock. Mare sure the arrow shaft is clean before you start applying the wrap.
4. Apply some pressure and slowly start wrapping the arrow wrap onto the shaft by rolling the shaft onto the wrap.
5. Check the overlap of the wraps for perfect fit. Push out any pockets of air.
6. Clean your wrap with a clean dry cloth, do not use solvents! your wrap is now ready to be fletched!
