Black Eagle

$122.00

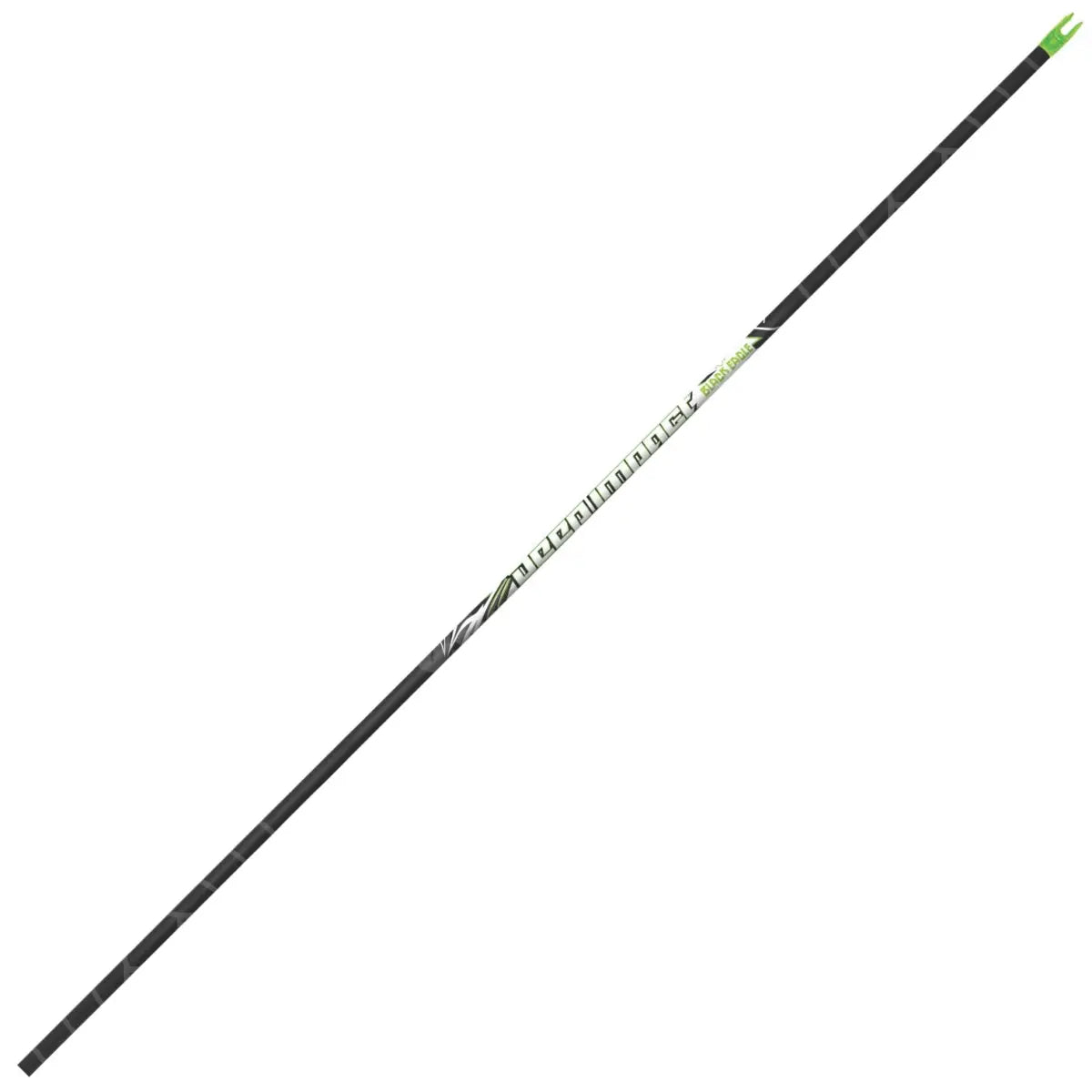

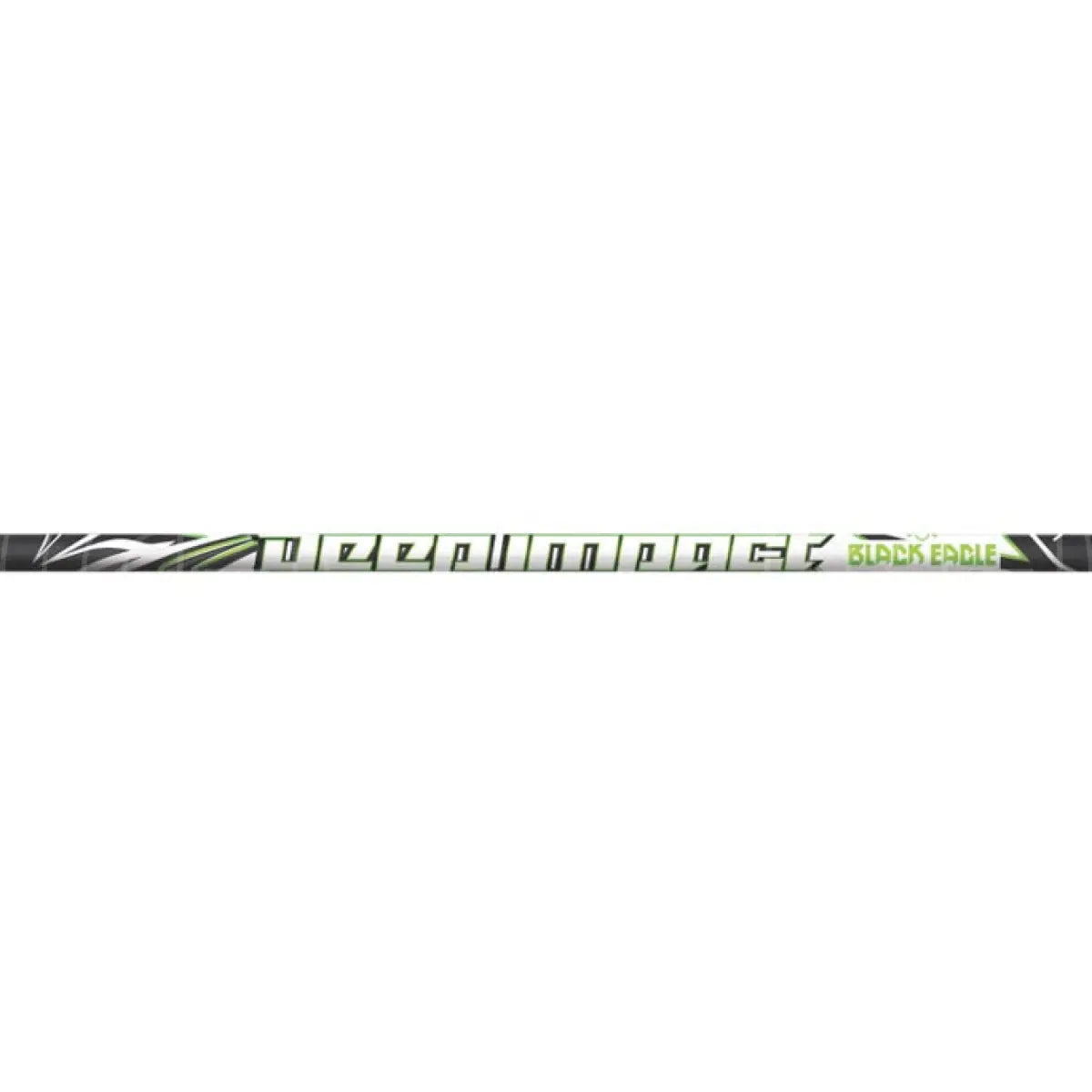

The Deep Impact is a 15 series, nano-diameter 100% carbon shaft.

This shaft uses fine-tuned spine-to-weight ratios to maximize speed, kinetic energy, penetration, and also to provide the flattest trajectory possible. It's the perfect shaft for any game.

Deep Impact shafts:

  • Straightness: ± .003"
  • Weight Tolerance: ± 1.0 grains
  • Maximum Bare Shaft length 32"
  • Includes 7075 Aluminium Outserts (supplied uninstalled)
  • Factory fitted Micro nocks - 8 Grains
Spine Inner Diameter Outer Diameter GPI
300 .165" .248" 11.0
350 .165” .240" 9.6
400 .165” .233" 8.6

OUTSERT SPECIFICATIONS

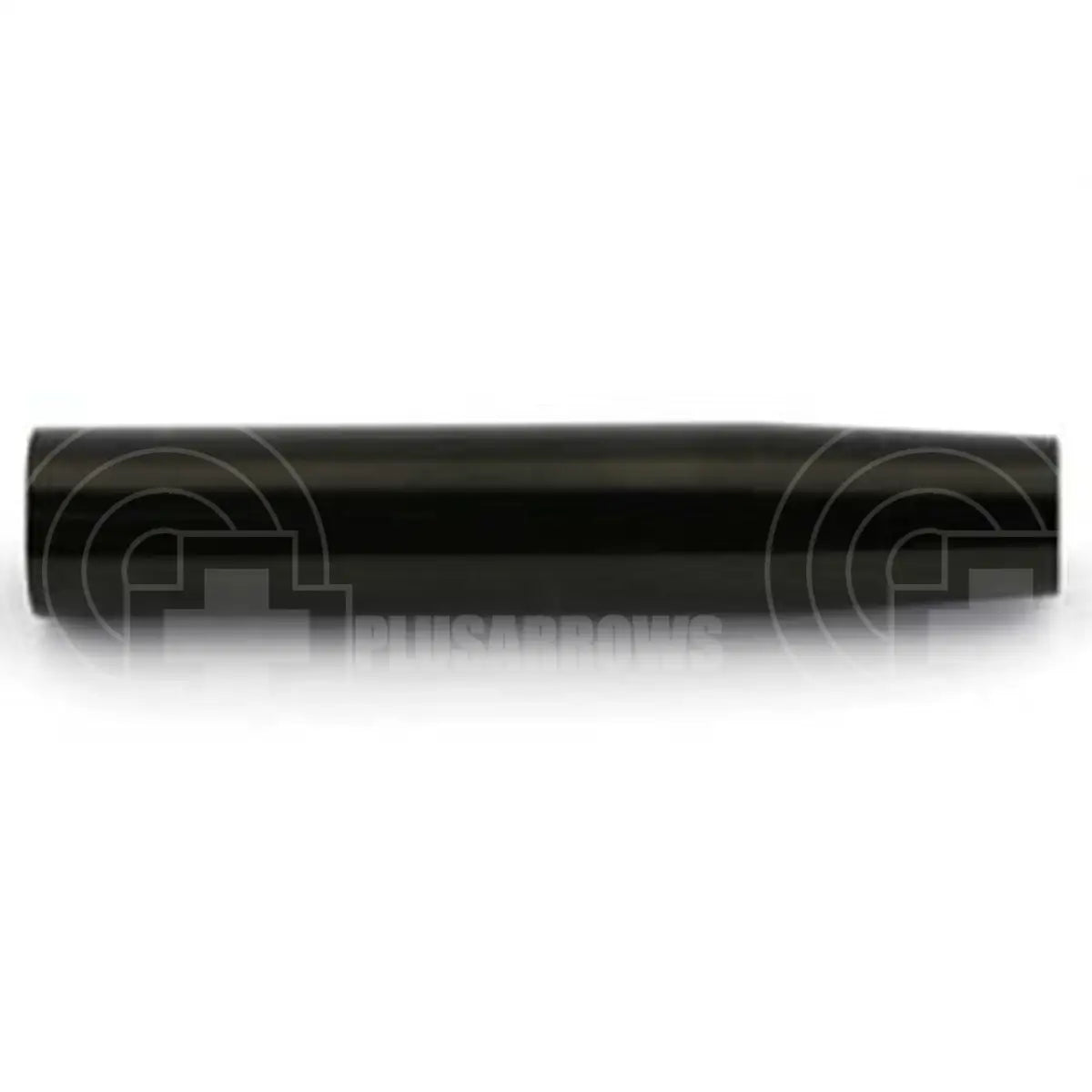

The black anodized 7075 T6 aluminium alloy outserts have been tested and designed by experienced hunters and target archers to ensure maximum penetration and performance.

The Deep Impact Outsert fully encompasses the base of the shaft just over 1 inch providing OUTSTANDING arrow strength and concentricity. With Micro-Glue channels inside the outsert to create a much better bonding surface this outsert is built to last shot after shot.

If you are looking for maximum penetration and shot after shot performance then the deadly combination of the Deep Impact Outsert and shaft are sure to be a hit!

The Deep Impact Outsert Weights are a Follows:

  • 250 Spine = 42 Grains
  • 300 Spine = 40 Grains
  • 350 Spine = 42 Grains
  • 400 Spine = 42 Grains
  • 500 Spine = 44 Grains
  • 600 Spine = 46 Grains

To install the outsert.

  1. Select the right outsert for the right shaft.
  2. Dry fitting is recommended on all components. Slide Outserts over shaft and spin test (if you prefer)
  3. If Outserts does not fit that is OK. Get some 100 Grit sand paper and lightly sand the shaft in a circular motion until the outsert fits snug on shaft. Start slowly so you don't remove to much off the arrow.
  4. Wipe dust off of the shaft with Clean paper towel. (No Cleaners are recommended)
  5. Again, Spin test to ensure concentricity. Rotating outsert until it spins perfect.
  6. Use a Silver or Black Sharpie and mark the Shaft and the Outsert for perfect alignment once glue is applied.
  7. Apply a even amount of glue around the shaft to ensure the glue channels get enough glue in them to hold.
  8. Once The outsert is glued on stand the arrow on the nock end to dry.
